161169 110° 1/2″ Overlay “D” Long Arm Hinge
Description
Purchase your cabinet hardware from under the same roof as your cabinet components!
WalzCraft’s Salice Series 200 Hinges can be applied to Face Frame or Frameless Cabinet Applications. A separate required Mounting (Base) Plate determines the application and overlay according to its design and thickness.
Salice’s 110° opening Long Arm Hinges (Salice Item # C2R6D99) are self closing, corrosion resistant, and ANSI/BHMA rated for residential or commercial cabinets. Series 200 Hinges also provide Clip-On Technology for rapid installation and a patented 6-Way Adjustability, with parallel side to side cam adjustment (Mounting Plates provide in/out and up/down adjustment).
 |
 |

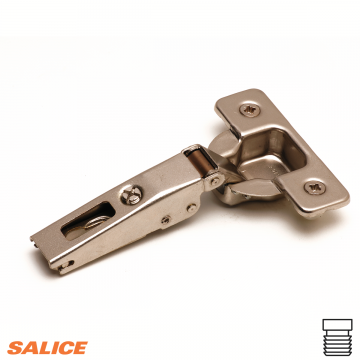

110 Degree 1/2" Overlay Long Arm Hinge
as shown- Style/Part #: 161169 (Press In Dowel Application)
Hinge Bore Compatibility:
- Hinge Bore Pattern: HP200
- Tab/Cup Drill Distance: 4mm
- Cup Bore Depth: 12.7mm (1/2″)
You Will Also Need To Order:
Compatible Mounting Plates:
Face Frame Cabinetry
- 1/2" Overlay Item #: 160692
Frameless Cabinetry
- 1/2" Overlay Item #: 160691
Press In Dowel Fixing Option
Each Hinge is provided with screws to affix to a door. Each Mounting (Base) Plate will require two wood screws to attach to the Face Frame or Cabinet Side. Mounting (Base) Plates & Wood Screws for Mounting (Base) Plates are sold separately.
A variety of overlays are available for both Face Frame and Frameless Cabinetry (including inset applications). For additional overlays, please contact our Customer Support Team to submit your special requirements and place your order.
