322 - Satin Steel Wire Mesh Grille (Flat)
Description

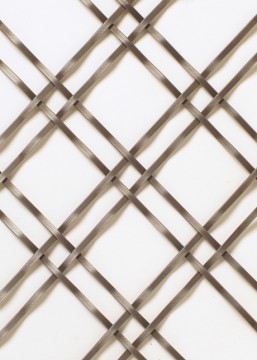

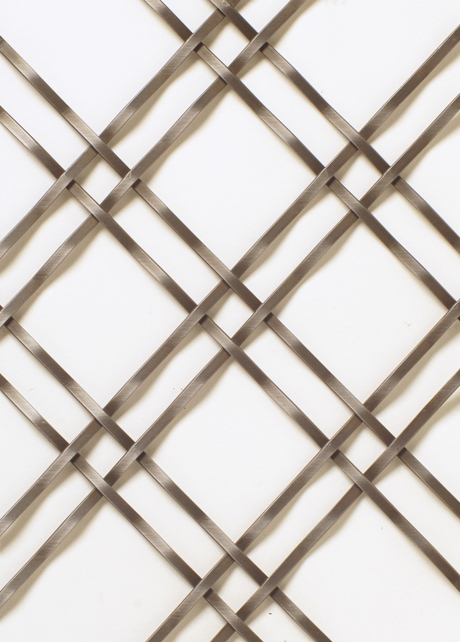

The Wire Mesh Grille Pattern #322 above is shown in an Satin Steel Finish with Flat Wire on the Face (Reeded Wire on the Back) in a Woven Diamond Pattern (Double Crimped Wire Style). The Double Crimp Wire Style method is similar to a single crimp method, as the wire is bent back and forth at evenly spaced intervals; however, wires are hand woven into every third crimp in each direction, forming the mesh.
Wire Mesh Grill Inserts offer a visually pleasing & functional purpose to doors by allowing air flow to and from the mesh area where there may be a need for breathability, such as with entertainment centers housing electronic equipment, where airflow is essential to the functionality of the equipment being stored.
WalzCraft’s Wire Mesh Inserts can be placed into any frame door style and can also be ordered separately by the sheet in any of the available patterns and finishes.
 |
 |
 |
 |
Wire Mesh Grille Specifications
as shown- Style/Part #: 322 - Satin Steel
- Pattern Number:322
- Finish/Wire Color:Satin Steel
(View Finish Options) - Wire Type:Flat Wire (Face)
(View Wire Types) - Wire Size:1/16" Thick
1/8" Wide - Wire-to-Wire Spacing:1/2" & 1 1/2"
- Wire Pattern:Woven Diamond Pattern
- Wire Crimp Style:Double
Additional Information:
Due to the maximum sheet size (20" x 48") available for Wire Mesh, some door sizes may need to be split with a center rail or center stile, or be constructed as two doors.
Installation:
WalzCraft offers Rubber Retainer in clear, white, brown & black colors that is compatible for affixing Wire Mesh Grille Inserts into any frame style door. Rubber retainer not only requires less time for installation, but also maintains a professional appearance from the backside of a door.
Samples:
Individual samples of Wire Mesh can be purchased in a 4 ½" x 8" size upon request. Please contact our Customer Support Team today to place your order.
