Applied Molding Cabinet Doors

Applied Molding Cabinet Doors take cabinetry to the next level of customization. Using an Applied Molding on cabinet doors can help differentiate your project from others that use more basic designs. Our moldings allow for more intricate details, and the stylish profiles add depth to the design. WalzCraft offers over 100 different applied moldings ranging from sleek and simple to bold and elaborate and everything in between, including over a dozen Beaded & Rope Moldings. All Applied Moldings are hand fit and applied by our experienced craftsmen with fine attention to detail. We are proud to not only offer the largest variety of standard options, but also a level of quality that is unparalleled in the industry.

View Applied Molding OptionsView Applied Molding ApplicationsView Rope, Beaded, and Egg & Dart Applied MoldingView Applied Molding Options for Curved Doors with Shaped RailsView Applied Molding Stock

Compatibility Charts
Applied Molding and Stile & Rail Compatibility Chart Applied Molding and Center Panel Profile Compatibility Chart

Main Divider

Applied Molding Applications

Applied Moldings can be applied to doors in a variety of ways, allowing you to choose the level of customization for your project. When ordering Applied Molding Doors, please specify the placement of the molding to ensure your order is constructed to taste. Below are descriptions of various Standard Applications available for Applied Moldings.

Inside Edge Applied Molding Applications 102 and 1251Inside Edge Applied Molding Application Examples

Moldings applied to the Inside Edge of the Stiles & Rails have a rabbet cut allowing the outside portion of the molding to sit on the Face of the Stiles & Rails, while the inside portion sits on the center panel. The molding is attached to the Stiles & Rails rather than the Center Panel, so as the panel contracts and expands there is no stress placed on the molding.

View All Inside Edge Applied Molding Applications here.

Shelf Applied Molding Application Examples

Shelf Applied Moldings are utilized to create a unique profile design, where the placement of the molding creates an appearance being one with the outer edge of the Center Panel or inside Stile & Rail profile. Applying molding directly to a Center Panel increases any risk for the molding to detach itself during seasonal changes as the Center Panel expands, as well as creating a gap between the molding and frame when the panel contracts. To combat these problems, WalzCraft attaches custom-designed moldings to a small shelf on the Stiles & Rails. Shelf applied moldings are used in a variety of ways as explained below, each creating a distinctive look.

View All Shelf Applied Molding Applications here.

Basic Shelf Applied Molding Application Example

Shelf Applied Molding ApplicationsWalzCraft’s SR117, SR122, SR135, SR136 and SR138 Stile & Rail profiles are designed specifically to fit a variety of Shelf Applied Moldings, making it easy for you to enhance the design of the inside edge of your door.



SR 133 Shelf Applied Molding Application Example

Shelf Applied Molding Applications for SR133WalzCraft’s SR 133 Stile & Rail profile is a unique shelf profile with the face of the shelf being shorter than on the back side of the Stile & Rail. This construction allows compatibility between certain Shelf Applied Moldings and Center Panels that would otherwise be incompatible.

Old World Shelf Applied Molding Application Example

Shelf Applied Molding Applications for Old World

Old World Stiles & Rails are 1” thick, giving a heavier feel to the door. Please note that some profiles not available in ¾” thick options.



Shelf Applied Molding Application Example for Mitered Stiles & Rails

Mitered Shelf Applied Molding ApplicationsWalzCraft also offers Mitered profiles with a built in shelf designed to hold Applied Moldings. This adds further dimension to our already beautiful Mitered profile designs.

Face Applied Molding ApplicationsFace of Stile & Rail Applied Molding Application Examples

Applied Moldings can be set on the face of the Stile & Rail to add height & depth detail to an existing Stile & Rail profile at the face of a door. Face Applied Moldings are commonly used in conjunction with WalzCraft’s SR107 profile, and can be combined with most other Traditional Stile & Rail profiles as well.

View All Face of Stile & Rail Applied Molding Applications here.

Recessed Applied Molding (RAM) Rout ApplicationRecessed Applied Molding (RAM Rout) Examples

A Recessed Applied Molding Rout is a recessed groove that is added to the face of a Mitered profile. Rope or Beaded Molding can then be recessed into the groove, with the additional option of adding Corner Blocks to transition the recessed molding to prevent mismatched profiles where corners meet. In this application the molding will be flush with the face of the mitered Stiles & Rails. (RAM Routs are only available on Mitered and French Mitered Doors).

View All Recessed Applied Molding (RAM Rout) Applications here.

Back to TopBack to Top ▲

Rope, Beaded and Egg & Dart Applied Moldings

Rope Applied Molding Examples

Adding a Rope Applied Molding to your door design can help you create that one of a kind look your customers so often expect. WalzCraft offers both Half Round and Quartered Rope Applied Moldings in several sizes, giving you the option to make the rope a standout or subtle accent to a door. Below are several examples of how Rope Applied Molding can be incorporated into a door design. Click on the individual images to view full specifications for each design.

View All Quartered Round Rope Moldings. View All Half Round Rope Moldings here.



AM1216 Rope Applied Molding (S233-Lexington) Shelf Applied MoldingAM1216 (S393-Weston) Rope Applied Molding Shelf ApplicationAM1008 Rope Applied Molding (S377-St-Augustine) Mitered Shelf Applied Molding
AM1008 Rope Applied Molding (S138-Florence) RAM Rout 6mmAM1008 Rope Applied Molding (S235-Bloomfield) RAM Rout 18mmAM1008 Rope Applied Molding (S139-Wakefield) RAM 23mm

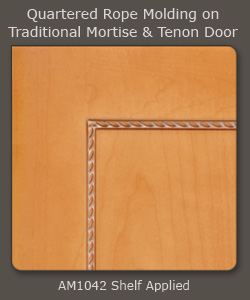

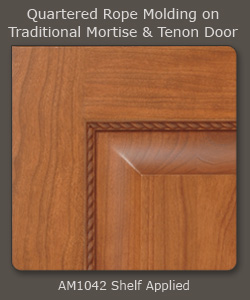

AM1008 Rope Applied Molding (S142-Harmony) Face of Veneered Flat Panel ApplicationAM1042 (S143-Westover) Qtr Rope Applied MoldingAM1042 (S144-Avalon) Qtr Rope Applied Molding



Embossed and Carved Beaded Applied Molding Examples

WalzCraft offers 3/16“ Embossed Beaded Molding that can be used as a Shelf Applied Molding with our SR117 and SR135 Stile & Rail Profiles for Traditional Mortise & Tenon Doors or our MP651 and MP615 Mitered Stile & Rail profiles for Mitered and French Mitered Doors. Below are several examples of how Embossed and Carved Beaded Applied Molding can be incorporated into a door design. Click on the individual images to view full specifications for each design.

View All Embossed and Carved Beaded Applied Molding Options here.

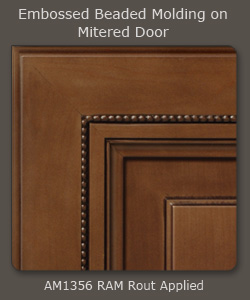

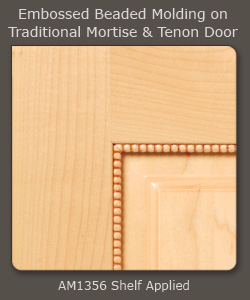

AM1356 (S234-Cutlerville) Embossed Beaded Applied Molding Shelf ApplicationAM1356 (S425-Victory) Embossed Beaded Applied Molding RAM Rout 23mmAM1356 (S424-Ontario) Embossed Beaded Applied Molding RAM 23mm

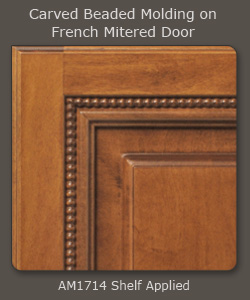

AM1356 (S428-Clifton) Embossed Beaded Applied-Molding RAM RoutAM1714 (S508-Merrimon) Carved Beaded Applied MoldingAM1714 (S686-Parsons) Carved Beaded Applied Molding FM Shelf Application



Egg & Dart Applied Molding Examples

WalzCraft offers 13/32” and ¾” Egg & Dart Moldings which can be incorporated into a door design to provide a rich, exclusive look. Below are two examples of how Egg & Dart Applied Molding can be incorporated into a door design. Click on the individual images to view full specifications for each design.

View All Egg & Dart Applied Molding Options here.

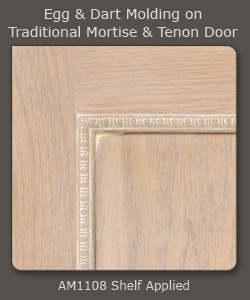

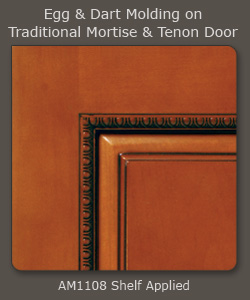

AM1108 (S352-Penn) Egg and Dart Shelf Applied MoldingAM1108 (S130-Havana) Egg and Dart Applied Molding Shelf Application

Corner Block Molding Examples

Corner Block Moldings are used with Beaded and Rope Moldings as an added decorative piece. Corner Blocks also prevent mismatched profiles where 2 pieces of Rope or Beaded Molding meet together at a corner transition. Below are two examples of how Corner Blocks can be used with Rope Applied Molding. Click on the individual images to view full specifications for each design.

View All Corner Block Molding Applications here.

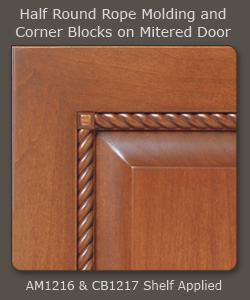

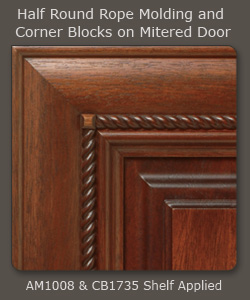

AM1008 and Corner Blocks1735 (S399-Bellhaven) Mitered Shelf Applied MoldingAM1216 Rope Applied Molding with 1217 Corner Blocks (S141-Marietta) Shelf Application

Back to TopBack to Top ▲

Applied Moldings for Curved (Radius) Doors

Applied Molding for Curved Radius Cabinet Doors

Several Applied Moldings are available on Curved Products. WalzCraft offers a variety of profiles and application options for both Convex & Concave Doors and Drawer Fronts. Throughout our product literature, a Identifying Curved and Radius Products and Profiles indicates moldings that are available with Curved Products.

Learn more about Curved Doors

Applied Moldings for Doors with Shaped Rails

Applied Molding for Doors with Shaped Rails

Although Applied Moldings are traditionally only available on square framed doors, WalzCraft offers this option on dozens of door styles with one or more shaped rails as well as Quarter & Half Circle Doors. These doors are great options if you are looking to create a wow-factor in your design. View All Applied Molding profile numbers that are compatible with shaped rails.
