Face Frame Stock

WalzCraft makes every attempt to produce all Face Frame parts from one solid piece of wood. For sizes wider than 9″, please ask about our Glued Up Panels (GUPFS). For Face Frame Stock longer than 96″, please also inquire with our Customer Support Team for availability.

Please note that all Prefinished Face Frame Stock is Stained & Sealed on two sides and all edges, and Top Coated on the face and all edges. As a standard, Face Frame Part sizes are 1 1/2″ wide, unless otherwise requested.

Straight Lineal Face Frame Stock (S4S)

Beaded Face Frame Stock

Straight Lineal Face Frame Stock has a wide array of applications throughout most cabinetry and furniture projects, most commonly for construction of Face Frame Configurations and as Fillers in transitional areas. WalzCraft creates Straight Lineal Face Frame Stock by running solid wood through a molder.FS100 Face Frame Stock

(Order Part #FS100)

  • Style: Square edges on all sides
  • Thicknesses: 1/2″, 5/8″, 3/4″, 7/8″, 1″, 1 1/8″, & 1 1/4″
  • Sold In:
    • 8′ Lengths
    • Cut to Length
    • Random Lengths between 36″ & 96″ long
  • Minimum Width: 1/2″
  • Maximum Width: 9″

Visit our online catalog specifications for Straight Lineal (S4S) Face Frame Stock here.

Solid Wood Beaded Face Frame Stock is most often used for Assembled or Ready to Assemble (RTA) Haunched Face Frames, with inset doors and drawer fronts. This type of stock can also be used for Fillers or Base Molding. Beaded Face Frame Stock includes profiling on the edge(s) unlike S4S Stock.

Beaded Face Frame Stock

(Order Part #FS101, FS102, FS103, FS104, FS105 or FS106)

  • Style: Beaded edged is incorporated on one or two sides
  • Thicknesses: 3/4″, 7/8″, 1″, 1 1/8″, & 1 1/4″
  • Sold In:
    • 8′ Lengths
    • Cut to Length
    • Random Lengths between 36″ & 96″ long
  • Minimum Width: 1/2″
  • Maximum Width: 9″

Please note that an additional Outside Edge profile can be applied to a straight edge only. The bead profile runs on the indicated long edge(s) and is not applied to the ends.

Joinery options are only available on the FS101 and FS103 styles and are added to the side of the stock without a bead.

Learn more about Beaded Face Frame Stock here by visiting our online catalog specifications.



Back to Top

Back to Top

Additional Profiled Stock Options

WalzCraft can also add a profile to further customize Profiled Stock used as Fillers, Countertop Edging, Casing & Base Molding. Choose from any of WalzCraft’s standard wood species and select your choice of Outside Edge Profile, Center Panel Profile, Stile & Rail Profile, or perhaps add a Joinery Option or Accent Profile.

Availability

  • Thicknesses: 3/4″ & 1″ (others available upon request)
  • Sold In:
    • 8′ Lengths
    • Cut to Length
    • Random Lengths between 36″ & 96″ long
  • Minimum Width: 1/2″
  • Maximum Width: 9″
Profile Placement / Joinery Placement for Profiled Stock Please see OEP100 photo below for placement of Profiles and/or Joinery Options for Profiled Stock. (Ends cannot be profiled). When ordering, please reference:F = Face/Front, B = Back, L = Left, R = Right

Profiled Stock Edge Orientation

Outside Edge Profiled Stock

Outside Edge Profiled Stock is available with any of WalzCraft’s standard Outside Edge Profiles (excluding Applied Molding Edges). When ordering, please specify your Outside Edge Profile choice and which edge(s) to apply the profile to.

OEP100

(Order Part #OEP100)

Learn more about Outside Edge Profiled Stock here. View all of WalzCraft’s standard Outside Edge Profiles here.

Center Panel Profiled Stock

Center Panel Profiled Stock is available with all of WalzCraft’s standard Center Panel Profiles. When ordering, please specify your Center Panel Profile choice and which edge(s) to apply the profile to.

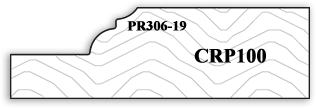

CRP100

(Order Part #CPP100)

Learn more about Center Panel Profiled Stock here. View all of WalzCraft’s Center Panel Profiles here.

Stile & Rail Profiled Stock

SRP100-with-and-without-panel-grooveStile & Rail Profiled Stock can be ordered with any of WalzCraft’s standard Traditional, Old World or Mitered Profiles, with or without a Center Panel Groove. When ordering, please specify the Stile & Rail Profile choice and whether your stock should include or exclude the Center Panel Groove.

*Please note that WalzCraft’s MP600 Series Mitered Profiles can be ordered in width dimensions up to 6″ while the MP700 Series is only available in the widths shown in our specifications catalog.


(Order Part #SRP100)

Learn more about Stile & Rail Profiled Stock here. View all of WalzCraft’s Stile & Rail Profile options below.

Profiled Stock with Joinery Options

Profiled Stock with Joinery Options is available with any of WalzCraft’s Miscellaneous Joinery Options. When ordering, please specify the Joinery Option and which edge to apply the Joinery Option to.

PS100-with-MJ3

(Order Part #PS100)

Learn more about Profiled Stock with Joinery Options here. View all of WalzCraft’s standard Joinery Options here.

Profiled Stock with Accent Profiles

Accent Profiles are available on one straight line edge only in 3/4″ and 1″ thick Profiled Stock. When ordering, please indicate your Accent Profile choice and which edge to apply the Accent Profile to.

AP100

(Order Part #AP100)

Learn more about Profiled Stock with Accent Profiles here.



Back to Top

Back to Top

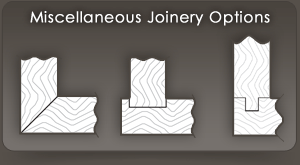

Miscellaneous Joinery Options & Joint Assembly Methods

Miscellaneous Joinery Methods

Miscellaneous Joinery OptionsMiscellaneous Joinery Methods (MJ Options) allow you to specify a choice of joinery where your Face Frame Configurations come together at 45° Inside & Outside Corners, other angled transitions such as 22 1/2° and 45° Inside & Outside Corners, and at Edge to Edge & Edge to Face transitions. All of WalzCraft’s Miscellaneous Joinery Methods are available for Face Frame Products and include:

  • Miter Cuts
  • Dado Options
  • Rabbet Grooves
  • Tongue & Groove Joints

For Dado & Rabbet Joinery options, WalzCraft asks that you specify the width and depth of the required groove, allowing you to customize your components to suit any application. Joinery Options such as the Dado, Rabbet and Tongue & Groove styles, allow for Flush or Offset (scribe) Joints.

The Four Most Common Miscellaneous Joinery Options for Face Frames Include:

  • MJ3 (a 45° Miter Cut applied to each edge coming together at a 90° Outside Corner transition)
  • MJ4 (a 45° Miter Cut applied to each edge coming together at a 90° Inside Corner transition)
  • MJ10 (a Dado Groove applied to the back side of a Face Frame where width, depth & placement of the groove can be specified, creating a 90° Outside Corner transition)
  • MJ18 (a Dado Groove applied to the face/front side of a Face Frame where width, depth & placement of the groove can be specified, creating a 90° Inside Corner transition)

Joinery Options can also be applied to other Assembled products from WalzCraft including Doors, Drawer Fronts and Fluted Moldings. For any other Joinery Option style, please submit your request to our Friendly Customer Support Team for review.

Learn more about all of WalzCraft’s Miscellaneous Joinery Options here by visiting our online catalog specifications. For customized Joinery Options, please submit your requests to our Customer Support Team for review.

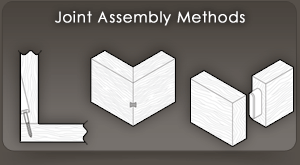

Joint Assembly Methods

Hoffman Dovetail Joinery Method for Corner Face FramesWalzCraft offers various Joint Assembly Methods for joining two Face Frame Configurations together. The preferred method is WalzCraft’s Hoffman Dovetail Assembly Method (JAM1), wherever possible. Hoffman Dovetail notches are routed into the parts to be conjoined, using a Hoffman Dovetail routing machine. Glue is then applied to the mating surfaces and assembled together. Hoffman Dovetails Keys are then inserted and driven into the material with a hammer, resulting in a perfectly aligned joint locking the pieces together.View all Joint Assembly Methods

The benefit of the Hoffman Dovetail Assembly Method includes the elimination of the clamping process during production, as Hoffman Dovetail Keys are designed to provide the correct clamping pressure for proper glue joints. This Method of Assembly also requires no additional fasteners, reducing potential damage from improper placement of screws or nails during construction and installation. This method of Joint Assembly is applicable for joints anywhere ranging from 0° to 180°.

Other Joint Assembly Methods available include Domino Tenon, Dowel, Biscuit, Pocket Screw and Countersunk Screw Assemblies. Fasteners such as Dovetail Keys, Dowels, Screws, etc., will be shipped loose unless parts are Assembled by WalzCraft.Please visit our online catalog specifications for Joint Assembly Methods here or contact our Customer Support Team today for additional information.
